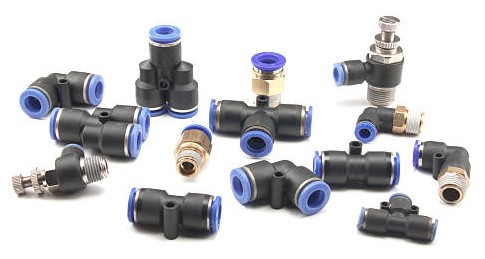

Pneumatic Fittings – Reliable Air Flow Solutions
Arihant ATF is a leading supplier and stockist of high-quality Pneumatic Fittings designed for efficient air flow control in pneumatic systems. Our fittings are manufactured using premium-grade materials to ensure leak-proof performance, durability, and corrosion resistance in industrial environments.
We supply a wide range of pneumatic fittings suitable for automation systems, compressors, air tools, and industrial machinery.

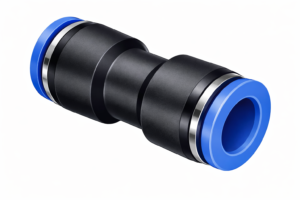

Tube Union
Pneumatic Tube Union is designed to connect two tubes of the same diameter in a straight line within pneumatic systems. It ensures secure, leak-proof connection and smooth air flow. Ideal for extending tubing length without pressure loss.
Available Sizes: 4mm to 16mm
Applications: Automation systems, air compressors, CNC machines

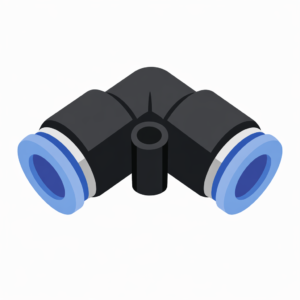

Elbow Union
Elbow Union is used to connect two pneumatic tubes at a 90° angle, allowing directional change of airflow without bending the tube. It helps maintain neat and organized piping layouts.
Available Sizes: 4mm to 16mm
Applications: Tight installation spaces, machine panels, control cabinets

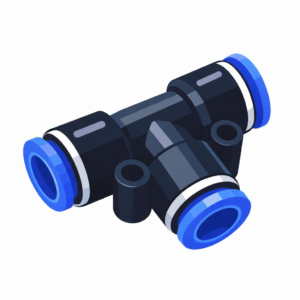

Tee union
Pneumatic Tee Union is used to connect three tubes for air distribution in a T-shape configuration. It allows air flow to branch into two directions from a single line.
Available Sizes: 4mm to 16mm
Applications: Multi-line air distribution systems

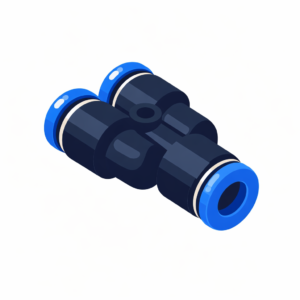

Y union
Y Union is designed for smoother air flow branching at an angle compared to tee fittings. It reduces air turbulence and improves system efficiency.
Available Sizes: 4mm to 12mm
Applications: Pneumatic automation lines, packaging machines

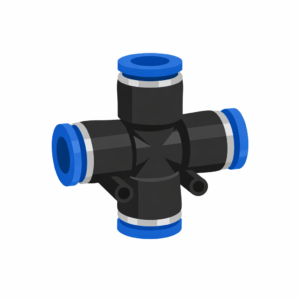

Cross union
Pneumatic Cross Union connects four tubes in a cross configuration, allowing multi-directional air distribution from a single source.
Available Sizes: 4mm to 12mm
Applications: Complex pneumatic systems, multi-branch air supply

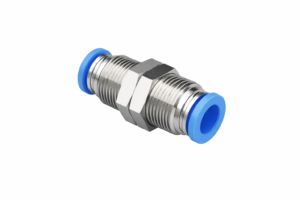

Bulkhead union
Bulkhead Union is used to connect tubes through panels or walls, providing secure passage of air lines between compartments. It ensures firm mounting and leak-proof sealing.
Available Sizes: 4mm to 16mm
Applications: Control panels, machine enclosures, industrial automation cabinets

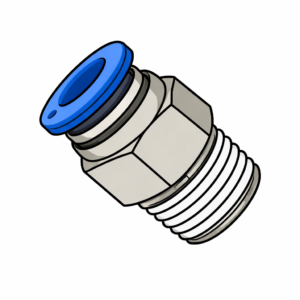

Male Connector
Pneumatic Male Connector is designed to connect pneumatic tubing to threaded female ports in air systems. It ensures secure air transfer with reliable sealing performance.
Available Tube Sizes: 4mm to 16mm
Thread Sizes: 1/8″, 1/4″, 3/8″, 1/2″
Applications: Air compressors, automation systems, pneumatic control panels

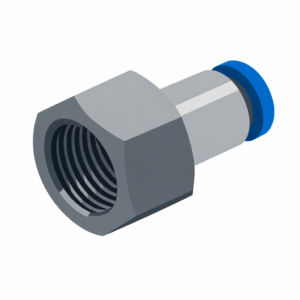

Female Connector
Pneumatic Female Connector connects pneumatic tubing to male threaded components. It provides strong grip and smooth airflow with excellent sealing capability.
Available Tube Sizes: 4mm to 16mm
Thread Sizes: 1/8″, 1/4″, 3/8″, 1/2″
Applications: Industrial machinery, pneumatic manifolds, air distribution lines

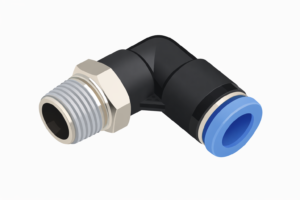

Male Elbow
Pneumatic Male Elbow is used to connect tubing to threaded ports at a 90° angle. It allows directional change of airflow while maintaining secure and leak-proof connection.
Available Tube Sizes: 4mm to 16mm
Thread Sizes: 1/8″ to 1/2″
Applications: Tight spaces, machine panels, control cabinets

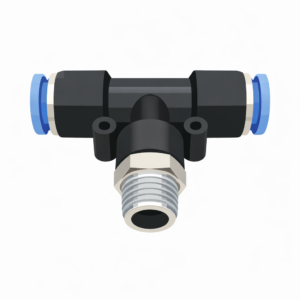

Branch Tee
Branch Tee fitting allows one main air line to branch off into a secondary direction. It is ideal for distributing air supply to multiple points in pneumatic systems.
Available Sizes: 4mm to 12mm
Applications: Air distribution systems, automation lines

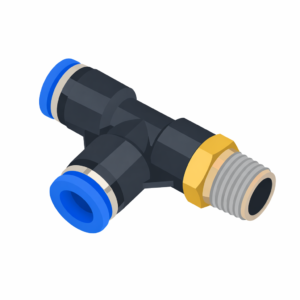

Run Tee
Run Tee is designed for straight air line continuation with a perpendicular branch. It allows main air flow to continue while supplying a secondary line.
Available Sizes: 4mm to 16mm
Applications: CNC machines, packaging systems, pneumatic tools

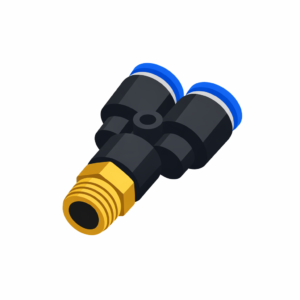

Y connector
Pneumatic Y Connector provides angled branching of air lines for smoother airflow compared to traditional tee fittings. It reduces turbulence and improves system efficiency.
Available Sizes: 6mm to 12mm
Applications: Automation equipment, air-operated systems

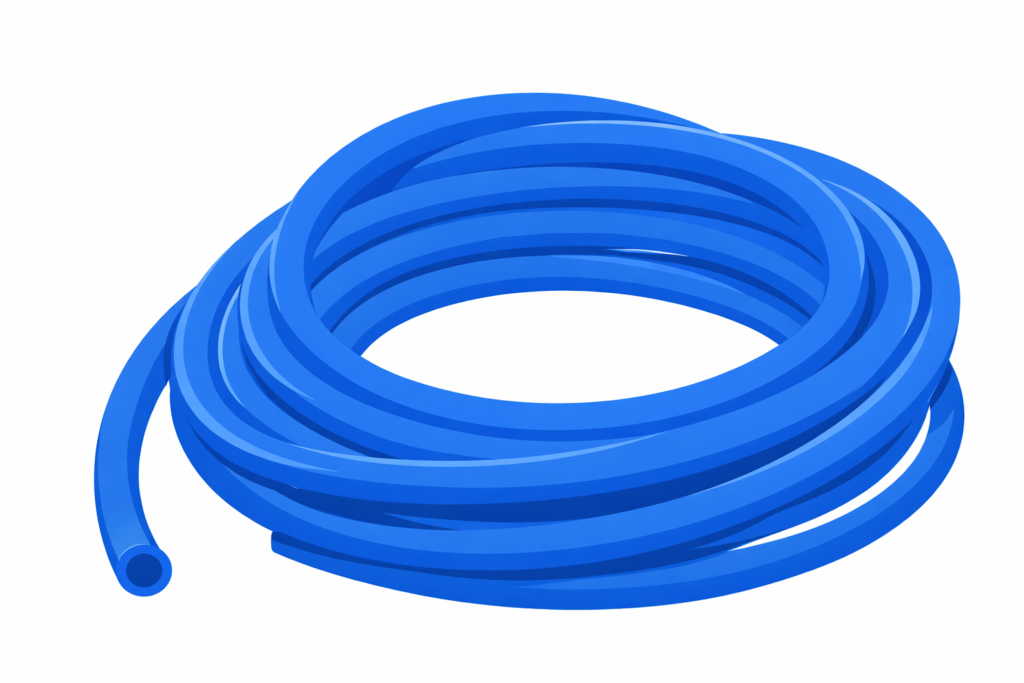

PU Tube
PU Tube is a flexible pneumatic air hose used for transferring compressed air in pneumatic systems. It offers excellent flexibility, high abrasion resistance, and long service life, making it ideal for dynamic industrial applications.
Available Sizes: 4mm, 6mm, 8mm, 10mm, 12mm, 16mm
Applications: Automation systems, CNC machines, packaging equipment, air compressors, industrial machinery
